INDUSTIES｜Breakthroughs of IO-Link Technology in High Current Applications

IO-Link technology is increasingly being recognized, and with it comes a growing demand for automation solutions. This article will explore in detail how IO-Link sub-stations provide ideal automation solutions for heavy industrial equipment in high-current environments, such as large forging equipment and progressive die stamping lines for high-load devices.

Application Background and Purpose

Customized IO-Link sub-stations focus on meeting the specific needs of heavy industrial equipment, particularly in efficiently handling large currents.

Solution

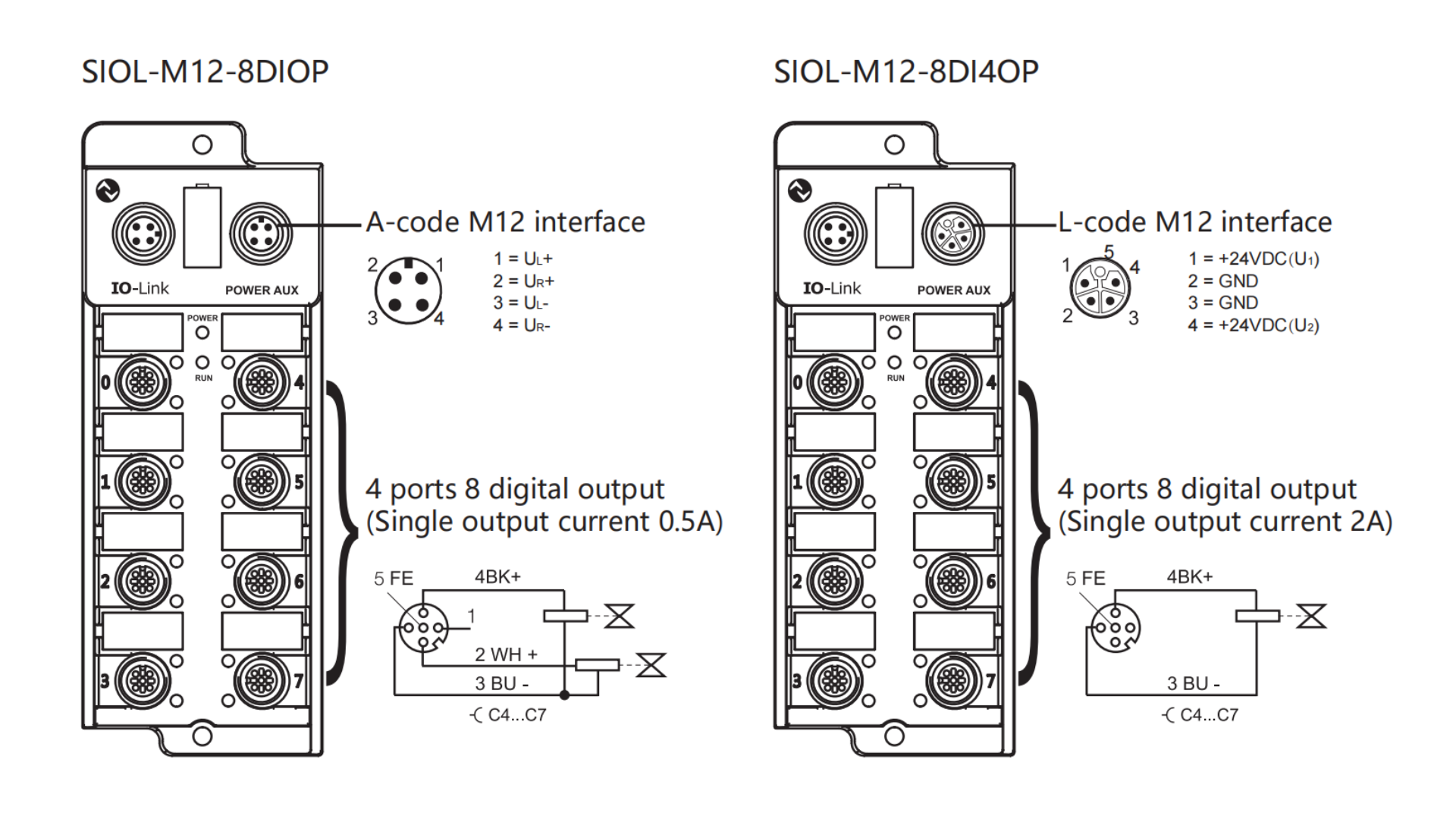

The new product is optimized in several key aspects over traditional IO-Link sub-stations. These include:

• Output Points: Enhanced from the standard 8-in-8-out to an 8-in-4-out configuration, better suited for high-load applications.
• Load Power Connectors: Upgraded from standard A-code M12 connectors to L-code M12 connectors to support larger current transmission.
• Single Point Output Current: Increased from the standard 0.5A, maximum 1A to 2A, significantly boosting the capability to drive large current loads.

Additionally, this customized IO-Link sub-station has overload and overheat protection, with a single point 2A output current, making it more suitable for driving large current loads. Its epoxy resin fully encapsulated design for shock and vibration resistance and an IP67 high protection level, make it well-suited for stable operation in harsh industrial environments.

Flexible and Rapid Response

Responding to the specific needs of customers, we took less than a month from communication with the customer to product research and development, and then to production. This quick response demonstrates our expertise in industrial automation and responsiveness to customer needs.

Customer Support and Service

For more information about IO-Link master and sub-station products, please contact our sales team or the company. Our professional technical team is always ready to offer customized support and efficient after-sales service, ensuring maximum benefit for every user.
