Technical Documentation | DhcpTool User Guide: Quickly Configure Device IP Addresses

Download Method

DhcpTool is an IP address allocation tool specially developed for industrial network devices, suitable for configuring Ethernet/IP modules operating in DHCP mode.
Users can visit our official website's Download Center to access the software download page and select the latest version. Alternatively, use the following quick download link to get the installation package directly:

👉 Quick Download Link: Click to Download DhcpTool

The installation package is compact, downloads quickly, and is compatible with mainstream Windows systems.

Installation Steps

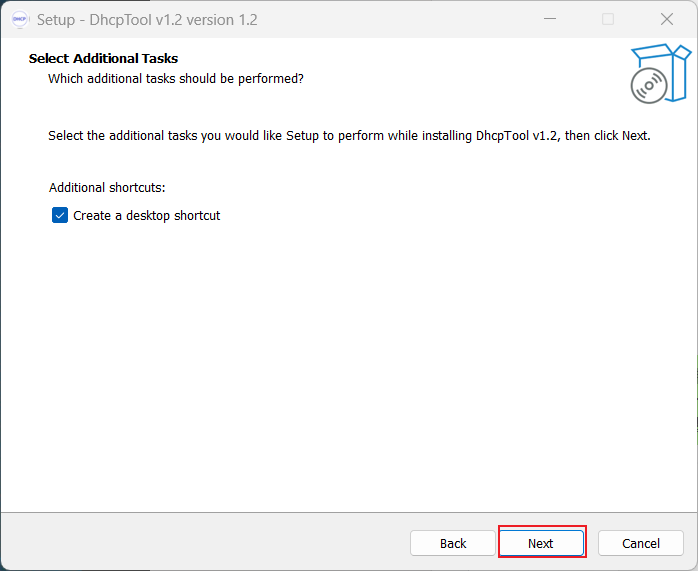

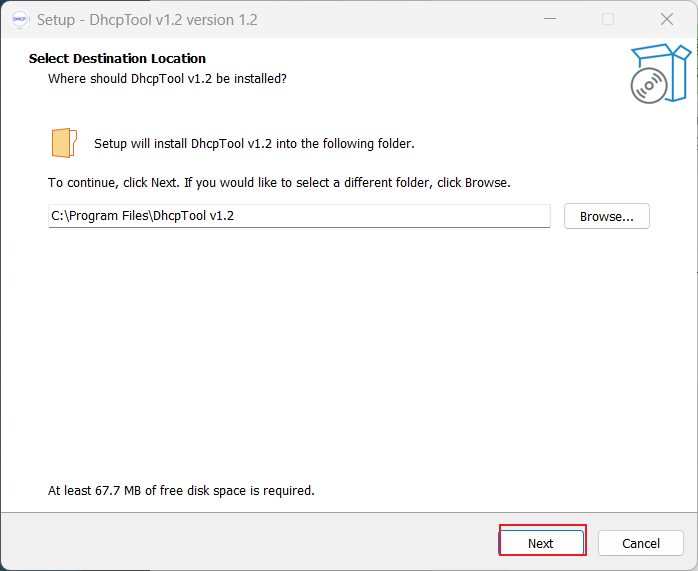

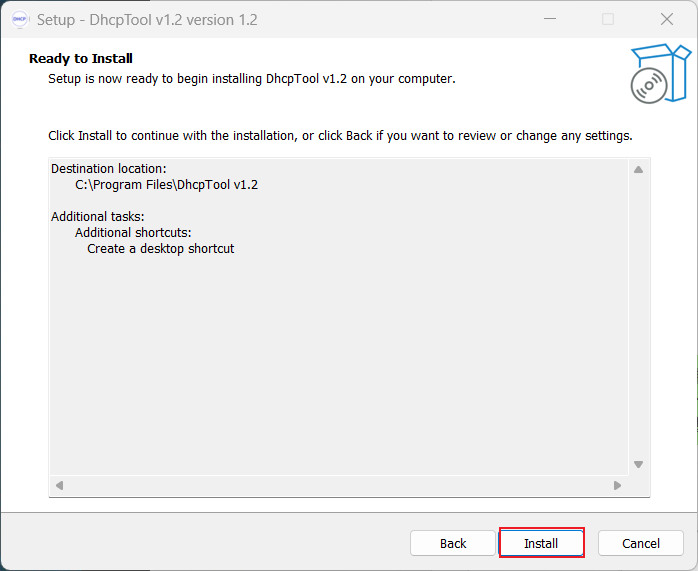

After downloading, double-click the installer and follow the wizard prompts by clicking “Next” to complete the installation.

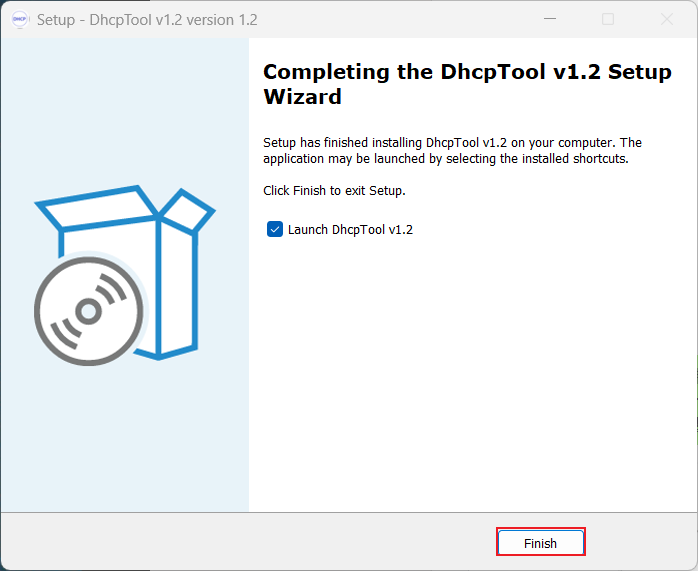

No additional dependencies are required during the installation. A desktop shortcut will be created upon completion for easy future access.

Usage Instructions

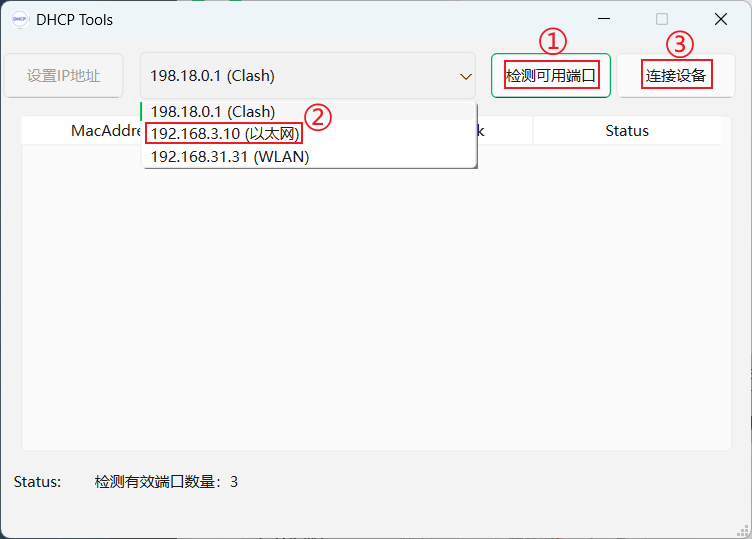

1. Launch DhcpTool, click "Detect Available Ports", then select the correct port. After that, click "Connect Device".


2. The software will automatically scan the current network for devices in DHCP mode (awaiting IP address assignment). The device list will display each module's MAC address and status.

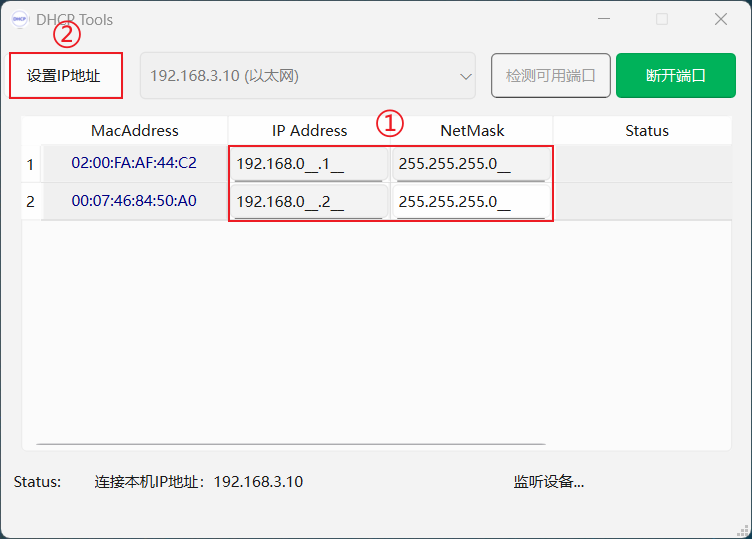

   Select the device to configure, enter the IP address and subnet mask, then click "Set IP Address". Once the device receives the configuration command, it will apply the new IP settings. This operation is simple and ideal for various on-site debugging scenarios.
