CIOL-2VI-SC

Order number： 78300006

Quick Info

IO-Link Device Converters
Dual-channel 0-10V Analog input,M12 4-pin female
IO-Link V1.1
IO-Link class A, M12, A-code,4-pin male
Transparent Housing with LED Indicators

Specifications

Download

Accessories

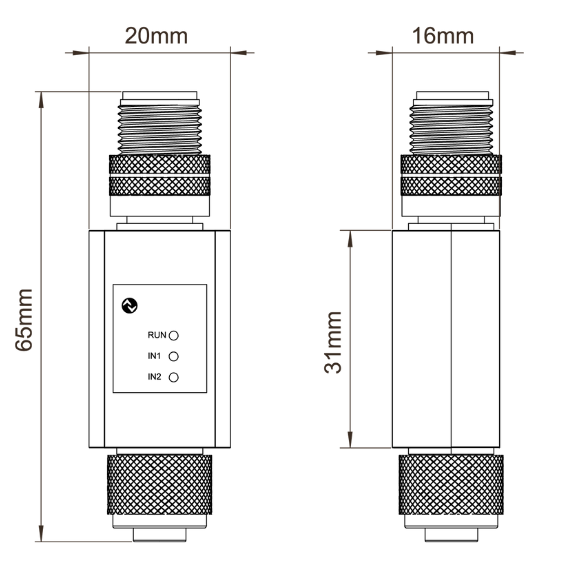

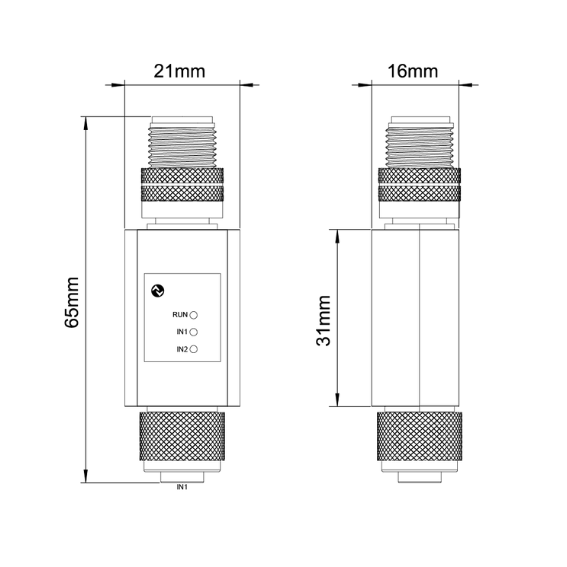

Mounting specifications

Supply voltage

24VDC ± 10%

Operating current

< 50mA

Supply current to the sensor

Max 500mA

Interface type

M12 A-coded,4-pin female

Number of input channels

Input type

0-10V Analog input

Input resolution

≤12位

Measurement accuracy

0.5%F.S

Data format

data in mV

Max input range

0-11V

IO-Link

Yes

Vendor ID

1317(0x0525)

Device ID

262673(0x040211)

Number of ports

1(M12 A-code 4-pin male)

IO-Link specification

V1.1

IO-Link port type

ClassA

IO-Link input byte

4bytes

Frame type

TYPE_2_V

Transmission rate

COM2 38.4kbit/s

Minimum cycle time

4000us

ISDU

Supported

Block parameter operation

Not Supported

Data storage

Supported

Data storage lock

Supported

Operating temperature

-25...80℃

2025-07-02 CIOL-2VI-SC_en

Download

Mounting accessories

ZAK4-2/PVC

I/O Cable：M12 ，Female，4-pin，Straigh

Cable material：PVC，2m
