SIOL-M8B-8DON

Order number： 78320025

Quick Info

IO-Link remote I/O device
8 Digital outputs Channels，M8，3-pin
IO-Link Protocol 1.1
IO-Link class B，M12，A-code
Impact and vibration resistance
Protection classes IP67

Specifications

Download

Accessories

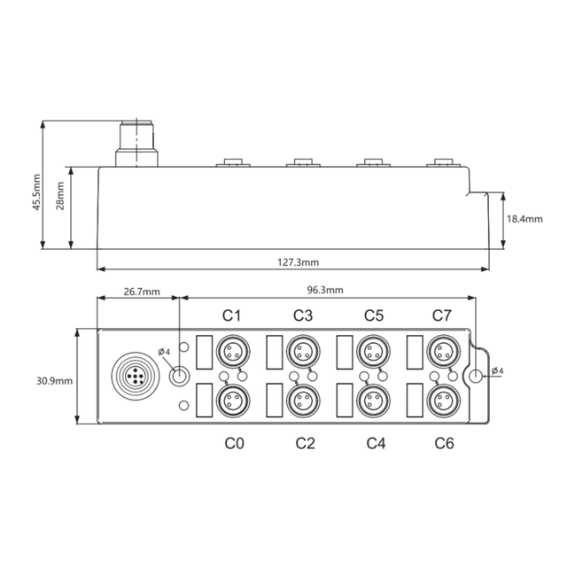

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 100mA

Number of channels

Output current

0.5A

Electrical Isolation mode

Optocoupler isolation

Output voltage drop

0.6V

ISDU

Supported

Operating temperature

-20-55℃

2024-10-31 SIOL-M8B-8DON-IODD files

Download

2024-09-24 SIOL-M8B-8DON_en

Download

Mounting accessories

ZAK4.5-2/PVC

IO-LINK Cable： Female

Cable Material：PVC，2m

ZKM5-PG7

Field-Wireable Connector,M12,Female

Plastic shell，5-Pin，A-Code

BSM3-0

Field-Wireable Connector,M8,Male

Plastic shell，3-Pin

ZBS3-2/PVC

I/O Cable：M8, Male, 3-pin

Cable Material：PVC，2m
