SIOL-M12-8VI

Order number： 78320015

Quick Info

IO-Link remote AI device

8-channel 0-10V input

IO-Link Protocol 1.1

IO-Link class A，M12，A-code

Glass fiber housing

Impact and vibration resistance

Fully potted module electronics

Copper-plated nickel connector

Protection classes IP67

Specifications

Download

Accessories

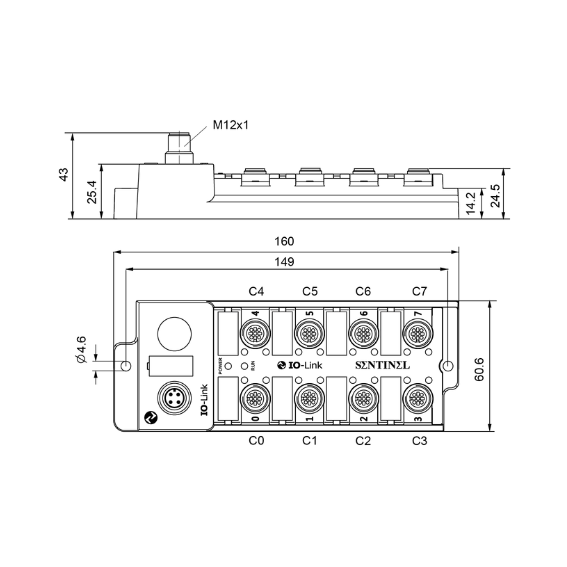

Mounting specifications

Working/load voltage

24VDC±10%

Module operating current

< 100mA

Input points

eight

Input method

0-10V analog input

Input resolution

≤ 13 digits

Maximum input range

0-22mA

IO LINK interface type

Class A

IO Link protocol version

V1.1

ISDU (Indexing Service)

support

working temperature

-20-55℃

2024-10-31 SIOL-M12-8VI-IODD files

Download

2023-12-01 SIOL-M12-8VI_en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO LINK cable: one pin, one hole

Cable material: PVC, 2 meters

ZKM4-PG9

Field wiring type M12 hole head

Plastic shell, 4-core, size A

ZAS4-2/PVC

I/O cable: M12 pin type

Cable material: PVC, 2 meters
