ZBSY4-0.5-2ZBK3-2/PVC

Order number： 40002.4005

Quick Info

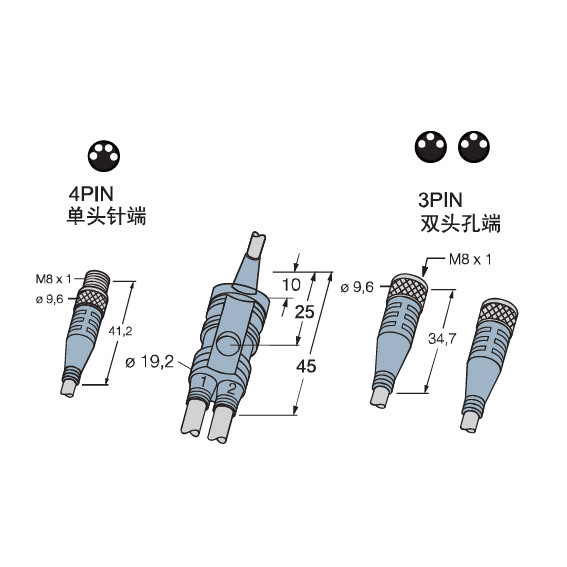

Y-Splitter with Cable
M8，Male，4-pin，Straight
M8，Female，3-pin，Straight
Cable length：0.5m/2m
Cable material：PVC
Cable color：Gray
Protection class：IP67

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Noise impedance

≤5mΩ

Core cross-section

0.25mm²

Cable diameter

4.4mm

Cable color

Gray

Contacts

Metal, CuZn, Gold-plated

Protection class

IP67
