ZAS4-2/PUR

Order number： 8252402

Quick Info

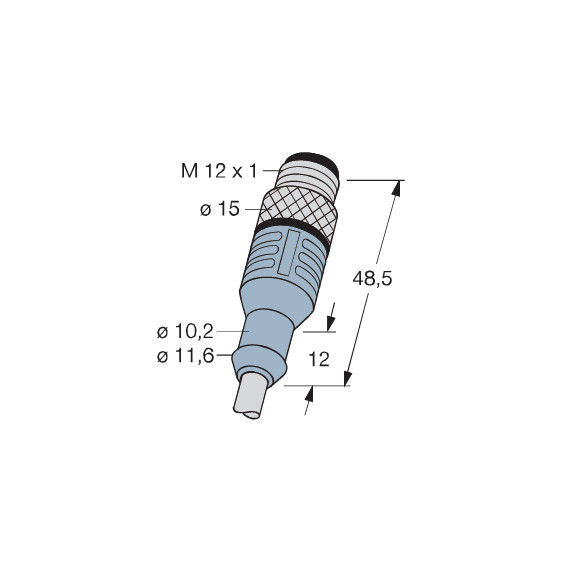

M12 Connection Cable
M12，Male，4-pin，Straight
Cable material：PUR
Cable length：2m

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Noise impedance

≤5mΩ

Cable diameter

5.25mm

Contacts

Metal, CuZn, Gold-plated

Seal

Viton(FPM)Plastic

Protection class

IP67

2022-07-01 ZAS4-2/PUR_en
