TP06N-G1/4-L50-I-SC

Order number： 090610134.050

Quick Info

PT100 temperature transmitter
Probe length：15...1000mm
A variety of mechanical threads are available
Output of voltage, current and resistance value

Specifications

Download

Accessories

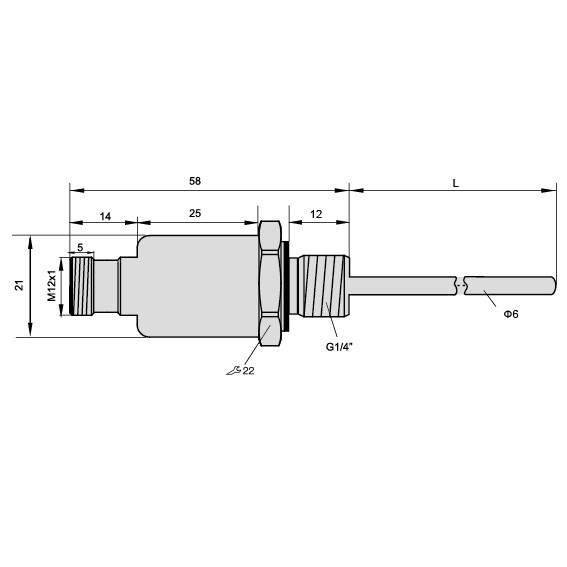

Mounting specifications

PT100

Class A

Process connection

G1/4 external thread

Measuring range

-50...500℃

Medium

Gas and Liquid

Compressive strength

400bar

Accuracy

±1℃

Electrical connection

M12x1 connector

Ambient temperature

-25...80℃

Protection class

IP67

Mounting accessories

I/O Cable：4-pin，M12 Female

Cable Material：PVC，2m
