EL05X-18YP-AD6-C2

Order number： 10802081

Quick Info

M18X1 cylindrical thread
CuZn-Cr shell material
2m,PVC
Protection class IP67

Specifications

Download

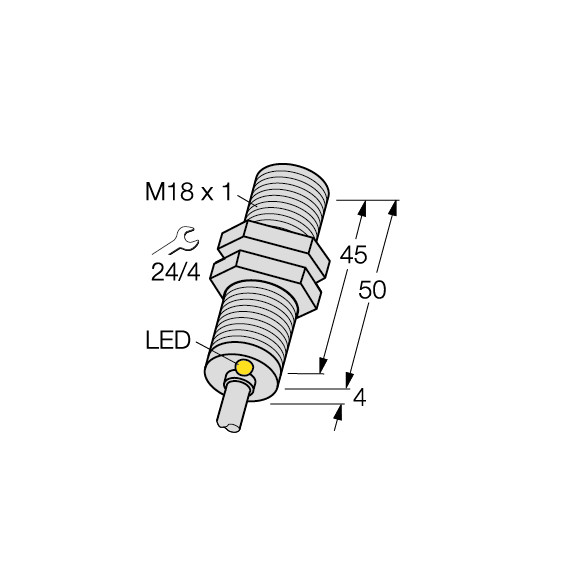

Mounting specifications

Operating Voltage

10-30VDC

Rated switching distance

5mm

Mounting conditions

Flush

Output

DC NO

Output leakage current

<2mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67
