ZZAK3P2-2-ZAS3/PUR

Order number： 1275302

Quick Info

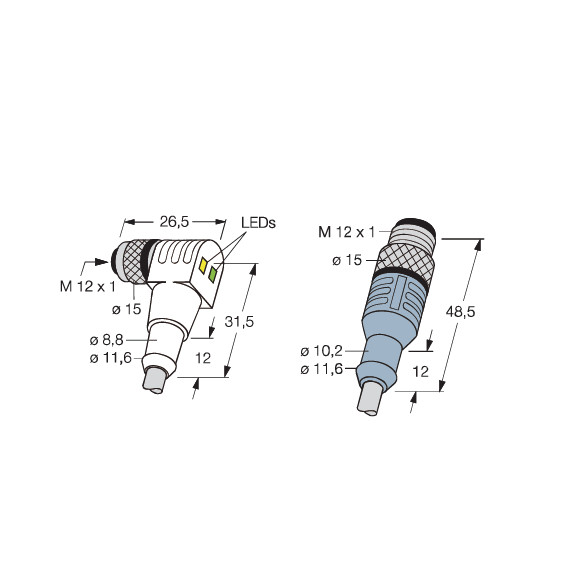

M12 Extension Cable
M12 with LED，Female，3-pin，Angle
M12，Male，3-pin，Straight
Cable material：PUR
Cable length：2m

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Noise impedance

≤5mΩ

Cable diameter

5.25mm

Contacts

Metal, CuZn, Gold-plated

Seal

Viton(FPM)Plastic

Protection class

IP67
