ZZBS3-2/PVC

Order number： 7062302

Quick Info

M8 Connection Cable
M8 ，Male，3-pin，Angle
Cable material：PVC
Cable length：2m

Specifications

Download

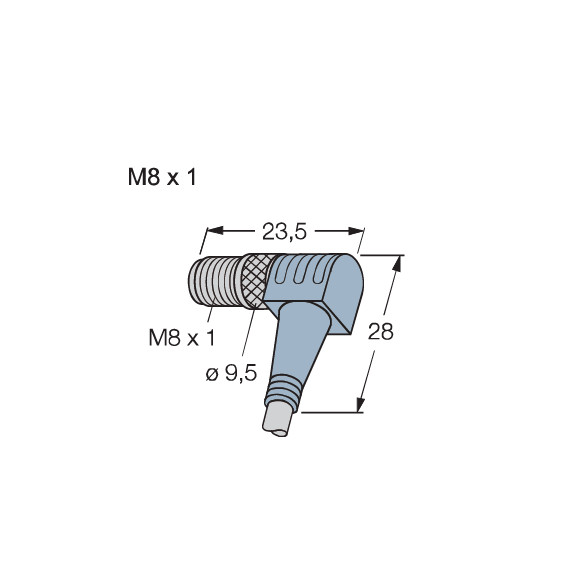

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Cable temperature range

-40-80℃

Cable diameter

4.4mm

Contacts

Metal, CuZn, Gold-plated

Seal

Viton(FPM)Plastic

Protection class

IP67
