ZBK4-2/PUR

Order number： 7251402

Quick Info

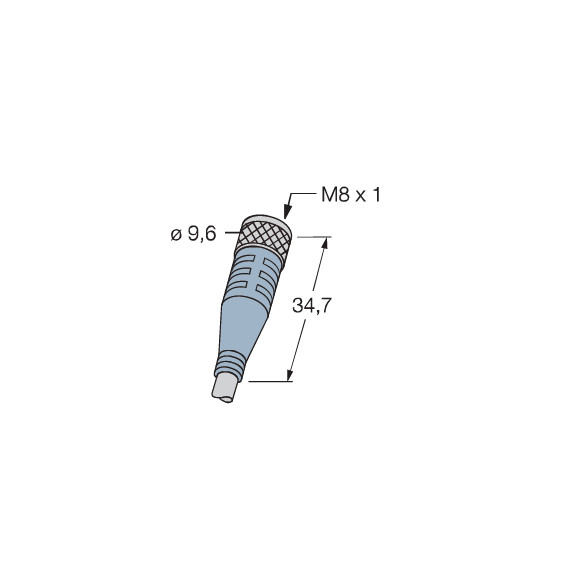

M8 Connection Cable
M8 ，Female，4-pin，Straight
Cable material：PUR
Cable length：2m

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Cable temperature range

-40-80℃

Cable diameter

4.4mm

Contacts

Metal, CuZn, Gold-plated

Seal

Viton(FPM)Plastic

Protection class

IP67

2022-04-13 ZBK4-2/PUR_en
