8M12-5P2-P

Order number： 0010025

Quick Info

M12, 8-channel Double signal (grounding).
Protection class IP65.
External PNP sensor signal.
The connection mode is shrapnel tightening terminal.
With on-site diagnosis function.

Specifications

Download

Accessories

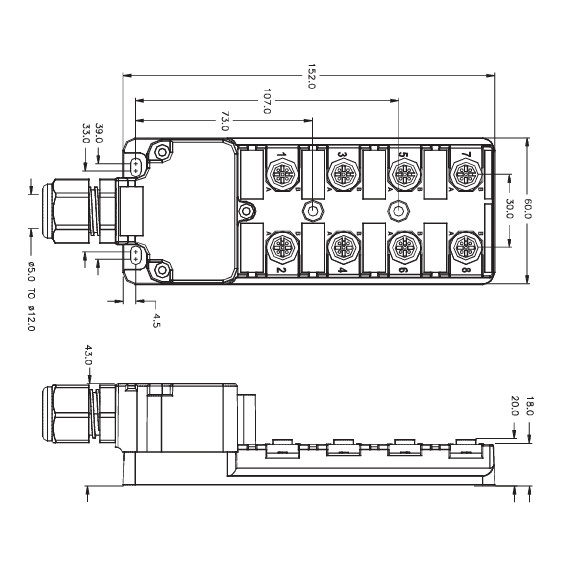

Mounting specifications

Rated voltage

10-30VDC

Rated current

10A

Current carrying capacity per channel

Number of ports

Port interface

M12 Female

Screw-in thread

PG9

Power supply voltage display

Green LED

I/O status display

Yellow LED

Protection class

IP65

2023-02-02 8M12-5P2-P_en

Download

Mounting accessories

CYCS5-2AK4

Y-Splitter without Cable

Housing Material：PVC

ZAK4.5-2/PVC

I/O Cable：5-pin，M12 Female

Cable Material：PVC，2m
