8M12-3P1-5

Order number： 0010009

Quick Info

M12, 8-channel single signal .
Protection class IP65.
External PNP sensor signal.
With Homerun Cable,5 m .
With on-site diagnosis function.

Specifications

Download

Accessories

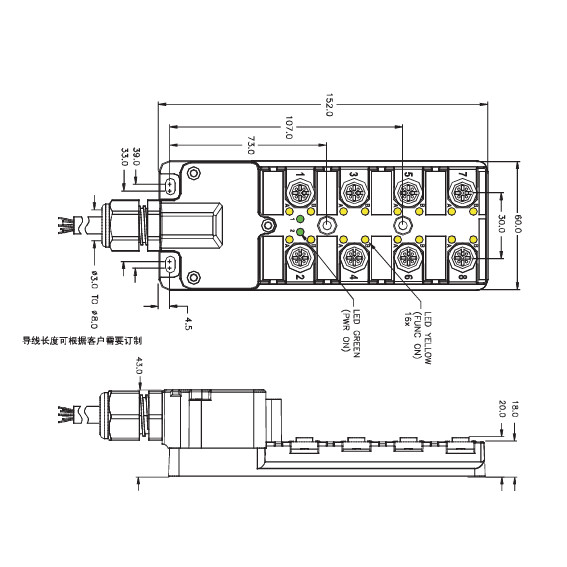

Mounting specifications

Rated voltage

10-30VDC

Rated current

10A

Current carrying capacity per channel

Number of ports

Port interface

M12 Female

Screw-in thread

PG9

Power supply voltage display

Green LED

I/O status display

Yellow LED

Protection class

IP65

2023-02-02 8M12-3P1-5_en

Mounting accessories

I/O Cable：3-pin，M12 Male-Female

Cable Material：PVC，2m

I/O cable：3-pin，M12 Male

Cable Material：PVC，2m

M12FIELD-WIREABLE CONNECTORS

Plastic shell
