4M12-5P2-S19

Order number： 0010047

Quick Info

M12, 4-channel Double signal (grounding).
Protection class IP65.
External PNP sensor signal.
The connection mode is M23 (19 Pins).
With on-site diagnosis function.

Specifications

Download

Accessories

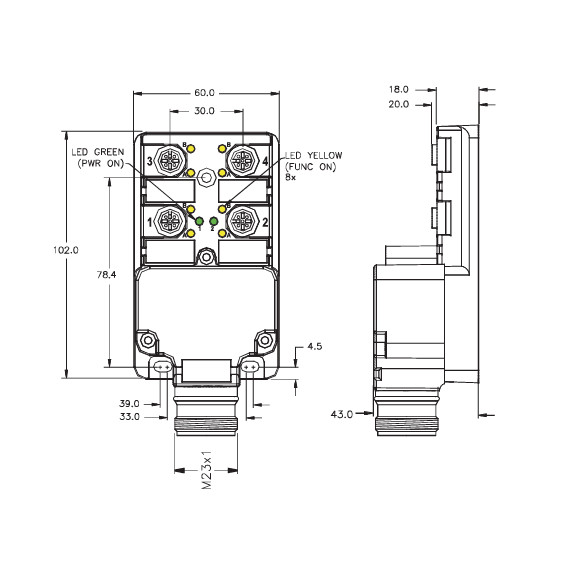

Mounting specifications

Rated voltage

10-30VDC

Rated current

10A

Current carrying capacity per channel

Number of ports

Port interface

M12 Female

Screw-in thread

M23 connector，19-pin

Power supply voltage display

Green LED

I/O status display

Yellow LED

Protection class

IP65

2023-02-02 4M12-5P2-S19_en

Download

Mounting accessories

ZDK19-2-PVC/PB/AJ

M23 connector，19-pin

Cable Material：PVC，2m

CYCS5-2AK4

Y-Splitter without Cable

Housing Material：PVC

ZAK3-2-ZAS3/PVC

I/O Cable：3-pin，M12 Male-Female

Cable Material：PVC，2m

ZAS4-2/PVC

I/O cable：4-pin，M12 Male

Cable Material：PVC，2m

ZSM4-PG7

M12FIELD-WIREABLE CONNECTORS

Plastic shell
