SIOL-M12-16DIP

Order number： 78320005

Quick Info

IO-Link remote I/O device
16 Digital inputs Channels，M12，5-pin
IO-Link Protocol 1.1
IO-Link class A，M12，A-code
Impact and vibration resistance
Protection classes IP67

Specifications

Download

Accessories

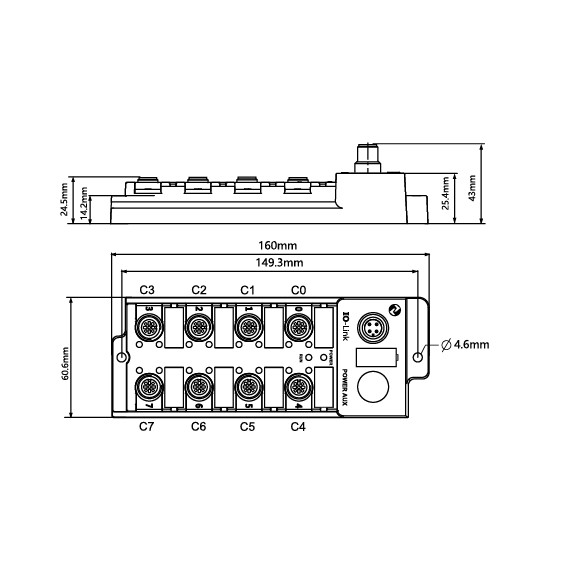

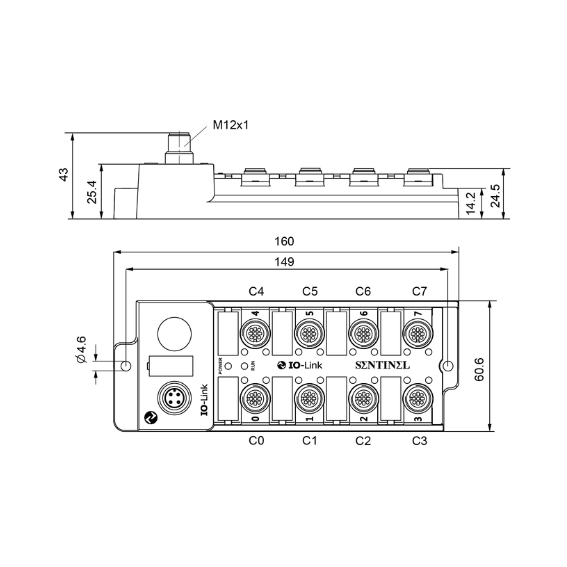

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 100mA

Maximum Supply current

>1.6A

Number of channels

Input type

PNP

Electrical Isolation mode

Optocoupler isolation

ISDU

Supported

Operating temperature

-20-55℃

2022-07-19 EPLAN_SIOL-M12-16DIP

Download

2022-06-09 SIOL-M12-16DIP-IODD files

Download

2022-06-09 SIOL-M12-16DIP-en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO-LINK Cable： Male，Female

Cable Material：PVC，2m

ZKM4-PG9

Field-Wireable Connector,M12,Female

Plastic shell，4-Pin，A-Code

CYCS5-2AK4

Y-Splitter without Cable

Housing Material：PVC

ZASY4-2ZAK3-2/PVC

Y-Splitter with Cable

Cable Material：PVC，2m

ZAS4-2/PVC

I/O Cable：M12 Male

Cable Material：PVC，2m
