SIOL-TL-16RM2S

Order number： 78320061

Quick Info

IO-Link remote I/O device

16 channels; 150 mA per point output; expandable

IO-Link V1.1

Spring-cage pluggable terminals for both communication and load power

DIN-35 mm rail mounting or fixed-hole mounting

Specifications

Download

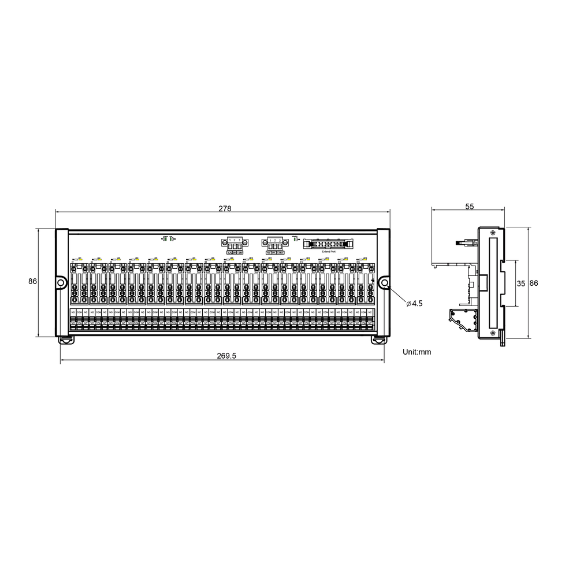

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 100mA

Supply current

≤4.8A

Number of Output Points

IO-Link Protocol Version

V1.1

IO-Link Port Type

Class A (Cage Clamp Terminal)

Transmission Rate

COM2 38.4kbit/s

ISDU

Supported

Operating Temperature

-25…55℃
