CIOL-PT12-SC

Order number： 78300007

Quick Info

IO-Link Device Converters
Single-channel Pt100 Input,M12 4-pin female
IO-Link V1.1
IO-Link class A, M12, A-code,4-pin male
Transparent Housing with LED Indicators

Specifications

Download

Accessories

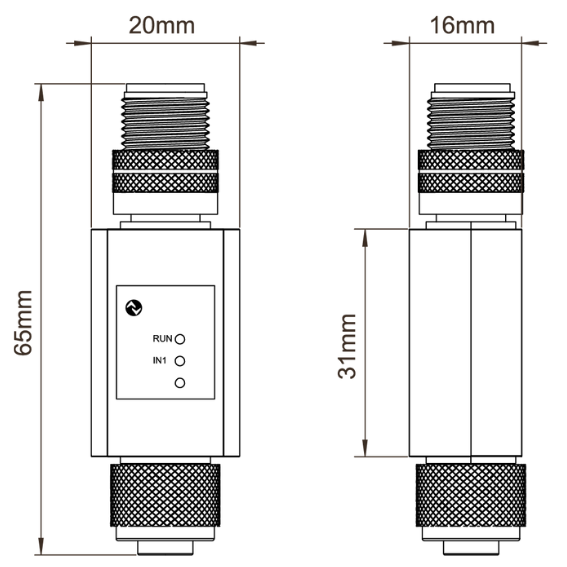

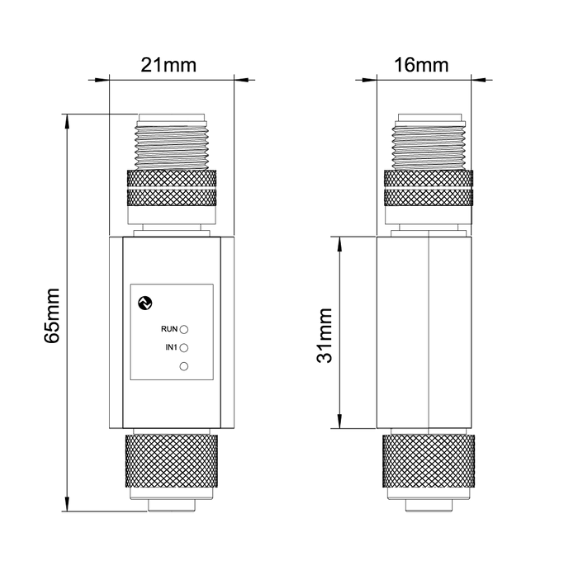

Mounting specifications

Supply voltage

24VDC ± 10%

Operating current

< 50mA

Number of input channels

Input Signal type

Pt100 2/3/4

Interface type

M12 5-pin female

Measurement range

-200...600℃

Input accuracy

±0.5℃

IO-Link

Yes

Vendor ID

1317(0x0525)

Device ID

262673(0x040202)

Number of ports

1(M12 A-code 4-pin male)

IO-Link specification

V1.1

IO-Link port type

ClassA

IO-Link input byte

2bytes

Frame type

TYPE_2_2

Transmission rate

COM2 38.4kbit/s

Minimum cycle time

4000us

ISDU

Supported

Block parameter operation

Not Supported

Data storage

Supported

Data storage lock

Supported

Operating temperature

-25...80℃

2025-12-03 CIOL-PTxx-SC_IODD

Download

2025-07-17 CIOL-PT12-SC_en

Download

Mounting accessories

ZAK4-2/PVC

I/O Cable：M12 ，Female，4-pin，Straigh

Cable material：PVC，2m
