SIOL-M12-8TCK

Order number： 78320048

Quick Info

IO-Link remote TC input device

8-channel TC input, M12 5-pin female

IO-Link V1.1

M12 A-coded, IO-Link standard class A interface

Outer shell made of glass ﬁber reinforced material

Impact and vibration resistance

Electronic circuitry encapsulated with epoxy resin

Protection class IP67

Specifications

Download

Accessories

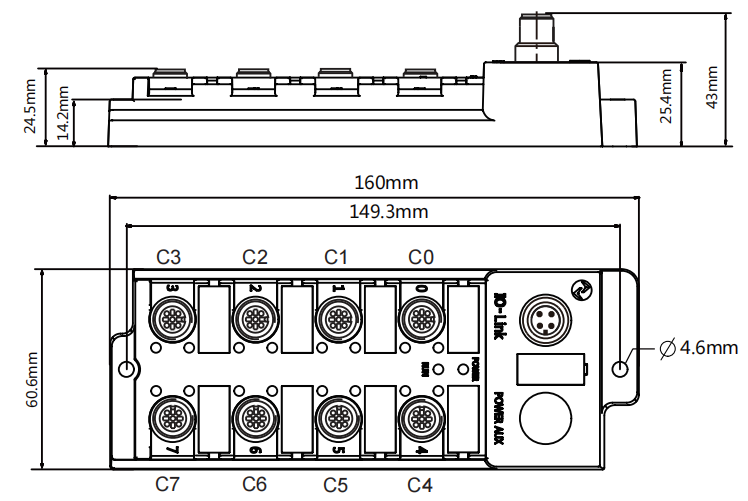

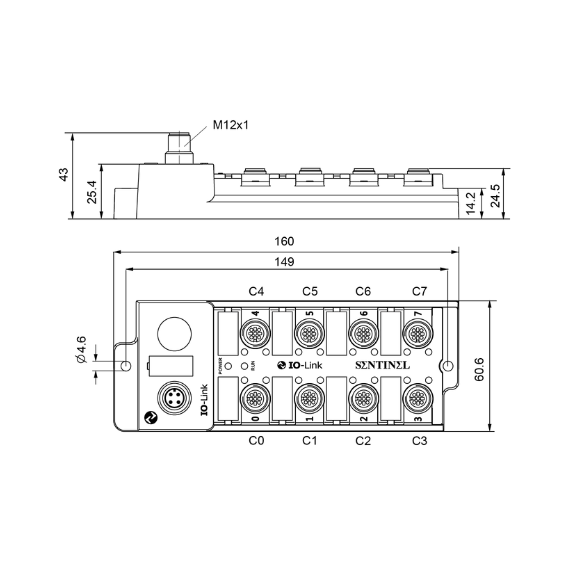

Mounting specifications

Working/load voltage

24VDC±10%

Module operating current

< 100mA

Input points

eight

Input method

K-Type

Input resolution

%0.2F.S

Measuring range

-200…1370℃

IO LINK interface type

Class A

IO Link protocol version

V1.1

ISDU (Indexing Service)

support

working temperature

-20-55℃

2025-06-20 SIOL-M12-8TCK_en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO LINK cable: one pin, one hole

Cable material: PVC, 2 meters

ZKM4-PG9

Field wiring type M12 hole head

Plastic shell, 4-core, size A

ZAS4-2/PVC

I/O cable: M12 pin type

Cable material: PVC, 2 meters
