THH06N-G1/4-L66-IL-SC

Order number： 590610134.66

Quick Info

Compact temperature transmitters for industrial applications
4-20mA two-wire or three-wire output
IO-Link Communication Protocol V1.1
Stainless steel housing
Electrical connection M12x1 A-coded 4-pin gold-plated
Probe length can be customized
PT1000 high precision temperature measuring element
G1/4 threaded pipe connection

Specifications

Download

Accessories

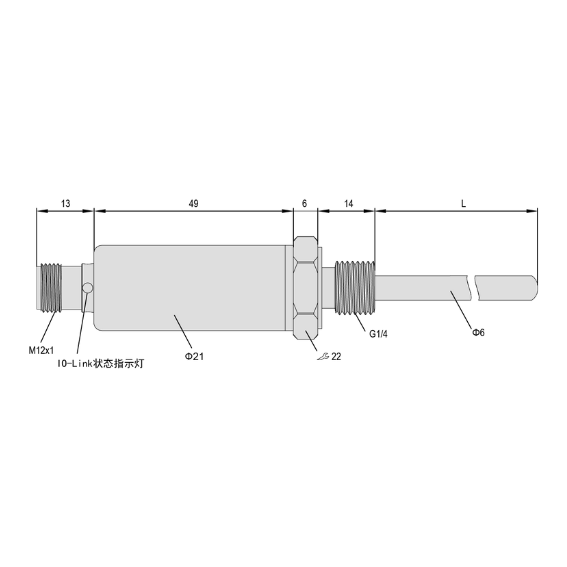

Mounting specifications

Supply voltage

24VDC ± 10%

Operating current

< 50mA

Measuring range

-50...150℃

Interface type

M12 A-coded 4-pin
