ELPN-16SAP-L001

Order number： 78263323

Quick Info

Profinet I/O Device
Integrated Ethernet Switch
Support 100Base-TX
Dual D-code M12 Ethernet I/O Modules interface
High-strength plastic housing
Shock and vibration resistance
Electronic circuit resin sealing
Nickel-plated copper connector
With IP67 high protection level

Specifications

Download

Accessories

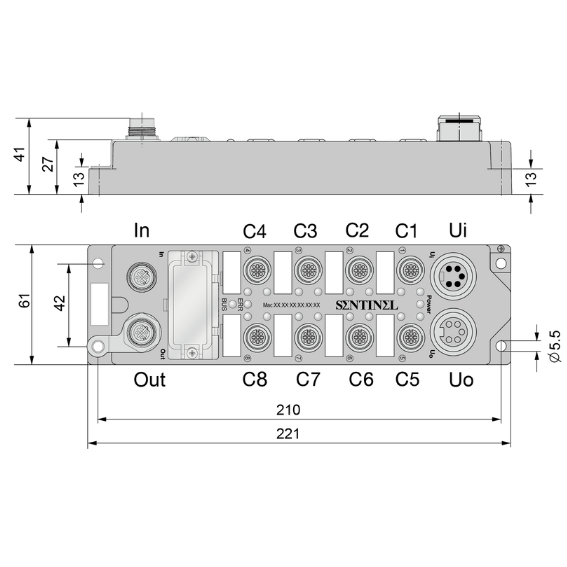

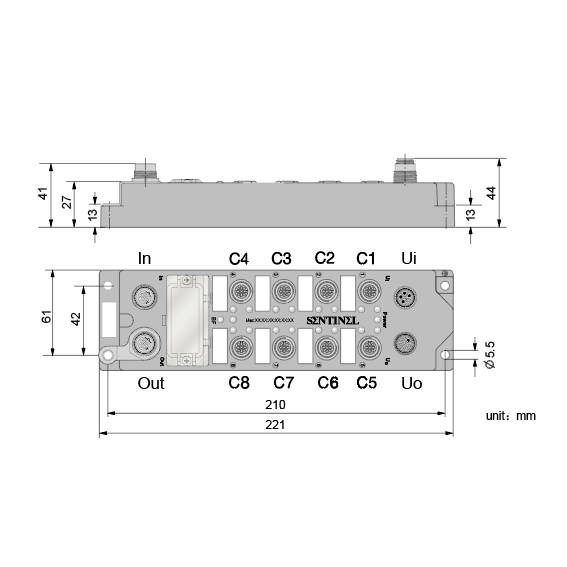

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 200mA

Number of input channels

Input type

PNP

Number of output channels
