CIOL-2AI-SC

Order number： 78300003

Quick Info

Dual-Channel Analog Input
IO-Link Smart Communication
IO-Link V1.1
IO-Link class A, M12, A-code
High-Precision Measurement
Transparent Housing with LED Indicators

Specifications

Download

Accessories

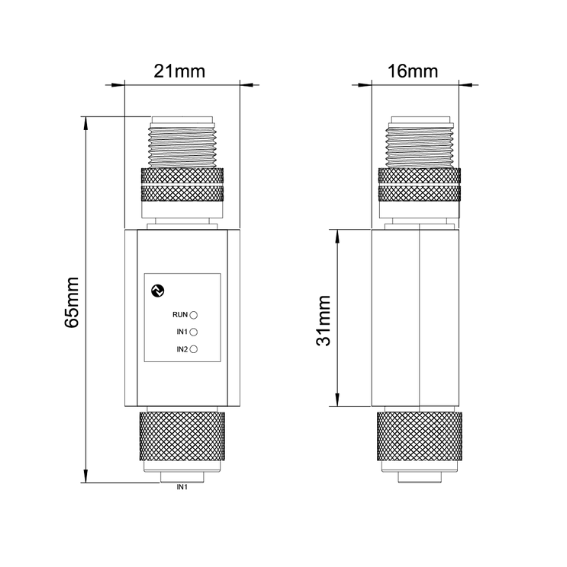

Mounting specifications

Supply voltage

24VDC ± 10%

Operating current

< 50mA

Number of channels

Input type

4-20mA/0-20mA analog input

input resolution

≤12bits

Measurement accuracy

0.5%F.S

Data format

data in uA

Max. input range

0-22mA

Operating temperature

-25...80℃

2025-03-26 CIOL-2AI-SC_en

Download

Mounting accessories

ZAK4-2/PVC

I/O Cable：M12 ，Female，4-pin，Straigh

Cable material：PVC，2m
