SIOL-M8-16DIN

Order number： 78320038

Quick Info

IO-Link remote I/O device
16 Digital inputs Channels，M8，3-pin
IO-Link V1.1
IO-Link class A，M12，A-code
Impact and vibration resistance
Protection classes IP67

Specifications
Download
Accessories

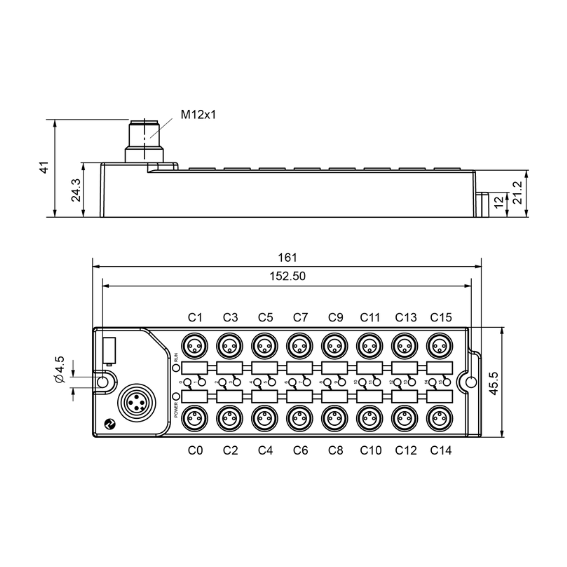

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 100mA
Maximum Supply current
1.4A
Number of input channels
16
Input type
NPN
Input delay
3ms
ISDU
Supported
Operating temperature
-20-55℃

2024-12-27 SIOL-M8-16DIN_IODD files Download
2024-12-27 SIOL-M8-16DIN_en Download
Mounting accessories
ZAK3-2-ZAS3/PVC
IO-LINK Cable： Male，Female
Cable Material：PVC，2m
ZKM4-PG9
Field-Wireable Connector,M12,Female
Plastic shell，4-Pin，A-Code
BSM3-0
Field-Wireable Connector,M8,Male
Plastic shell，3-Pin
ZBS3-2/PVC
I/O Cable：M8, Male, 3-pin
Cable Material：PVC，2m
