SIOL-M12B-16SAP/EX

Order number： 78320046

Quick Info

IO-Link IN/OUT Self-Adaption I/O Module

16-channel digital input, M12, 5-pin

16-channel 0.2A digital output

IO-Link V1.1

IO-Link class B, M12, A-code

Impact and vibration resistance

Fully potted module electronics

Protection class IP67

Specifications

Download

Accessories

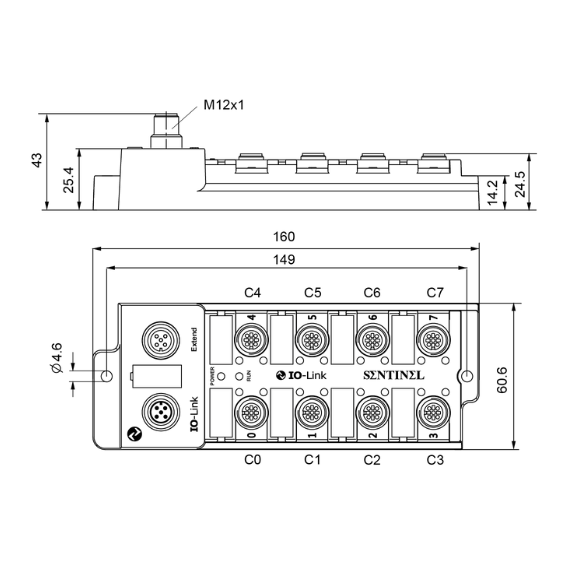

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 100mA

Working and load power supply

≤4A

Number of Input/Output Channels

Input/Output type

PNP

Isolation Method

Optocoupler Isolation

ISDU

Supported

Operating temperature

-20…55℃

2024-12-27 SIOL-M12B-16SAP/EX_IODD files

Download

2024-12-27 SIOL-M12B-16SAP/EX_en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO-LINK Cable： Male，Female

Cable Material：PVC，2m

ZKM4-PG9

Field-Wireable Connector,M12,Female

Plastic shell，4-Pin，A-Code

CYCS5-2AK4

Y-Splitter without Cable

Housing Material：PVC

ZASY4-2ZAK3-2/PVC

Y-Splitter with Cable

Cable Material：PVC，2m

ZAS4-2/PVC

I/O Cable：M12 Male

Cable Material：PVC，2m
