SIOL-M12A-16SAP

Order number： 78320040

Quick Info

IO-Link IN/OUT Self-Adaption I/O Module
16-channel digital input, M12, 5-pin
16-channel 0.2A digital output
IO-Link V1.1
IO-Link class A, M12, A-code
Impact and vibration resistance
Fully potted module electronics
Protection class IP67

Specifications
Download
Accessories

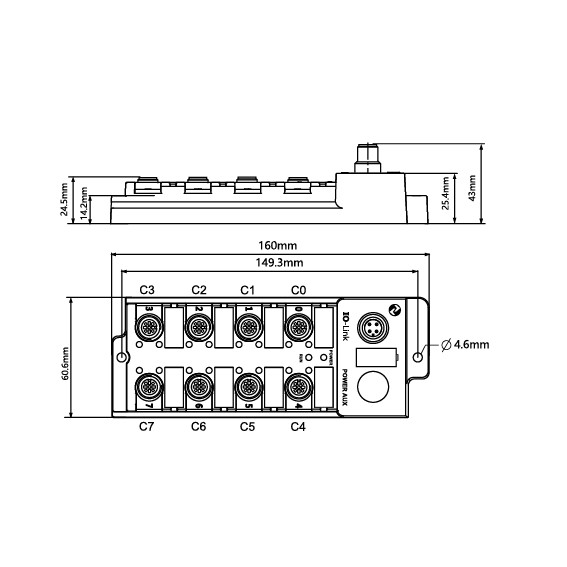

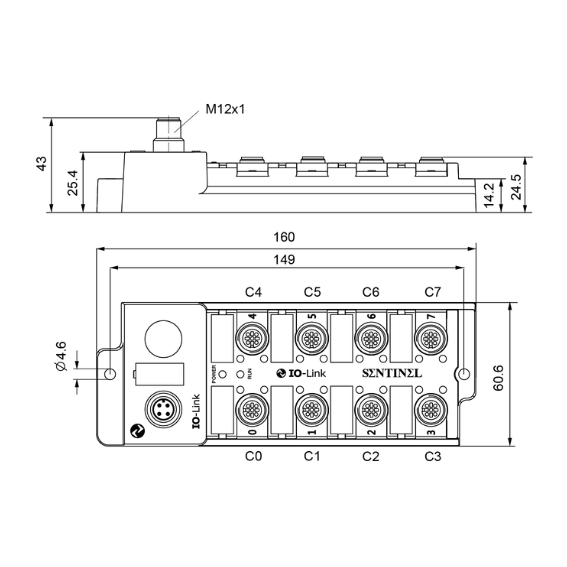

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 100mA
Working and load power supply
≤4A
Number of Input/Output Channels
16
Input/Output type
PNP
Isolation Method
Optocoupler Isolation
ISDU
Supported
Operating temperature
-20…55℃

2024-12-27 SIOL-M12A-16SAP_IODD files Download
2024-12-27 SIOL-M12A-16SAP_en Download
Mounting accessories
ZAK3-2-ZAS3/PVC
IO-LINK Cable： Male，Female
Cable Material：PVC，2m
ZKM4-PG9
Field-Wireable Connector,M12,Female
Plastic shell，4-Pin，A-Code
CYCS5-2AK4
Y-Splitter without Cable
Housing Material：PVC
ZASY4-2ZAK3-2/PVC
Y-Splitter with Cable
Cable Material：PVC，2m
ZAS4-2/PVC
I/O Cable：M12 Male
Cable Material：PVC，2m
