SIOL-M12-8DI4ON

Order number： 78320034

Quick Info

IO-Link remote I/O device
8 Digital inputs Channels，M12，5-pin
4 Digital outputs Channels，Max. 2 A per output
IO-Link Protocol 1.1
IO-Link class A，M12，A-code
Impact and vibration resistance
Protection classes IP67

Specifications

Download

Accessories

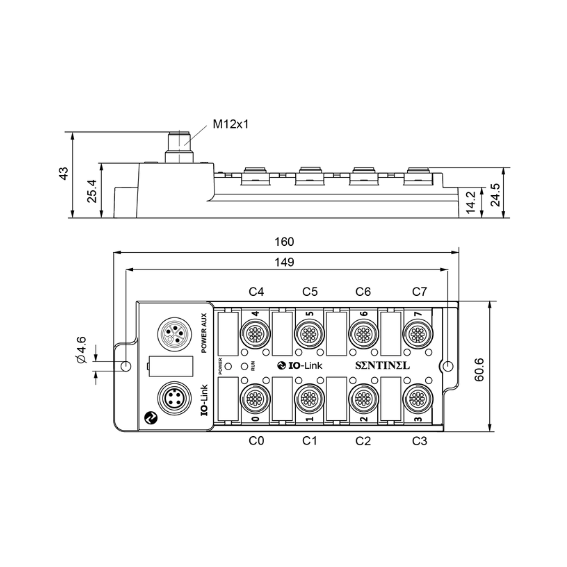

Mounting specifications

Supply voltage

24VDC±10%

Operating current

< 100mA

Current required for the auxiliary power supply

>8A

Number of input channels

Input type

NPN

Number of output channels

Output current

Output voltage drop

0.6V

Electrical Isolation mode

Optocoupler isolation

ISDU

Supported

Operating temperature

-20-55℃

2024-10-31 SIOL-M12-8DI4ON-IODD files

Download

2024-09-24 SIOL-M12-8DI4ON_en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO-Link Cable： Male，Female

Cable Material：PVC，2m

ZKM4-PG9

Field-Wireable Connector,M12,Female

Plastic shell，4-Pin，A-Code

CYCS5-2AK4

Y-Splitter without Cable

Housing Material：PVC

ZASY4-2ZAK3-2/PVC

Y-Splitter with Cable

Cable Material：PVC，2m

ZAS4-2/PVC

I/O Cable：M12 Male

Cable Material：PVC，2m
