SIOL-M12B-16DON

Order number： 78320021

Quick Info

IO-Link remote I/O device

16 Digital outputs Channels,Max. 0.5 A per output

IO-Link Protocol 1.1

IO-Link class B，M12，A-code

Glass fiber housing

Impact and vibration resistance

Fully potted module electronics

Copper-plated nickel connector

Protection classes IP67

Specifications

Download

Accessories

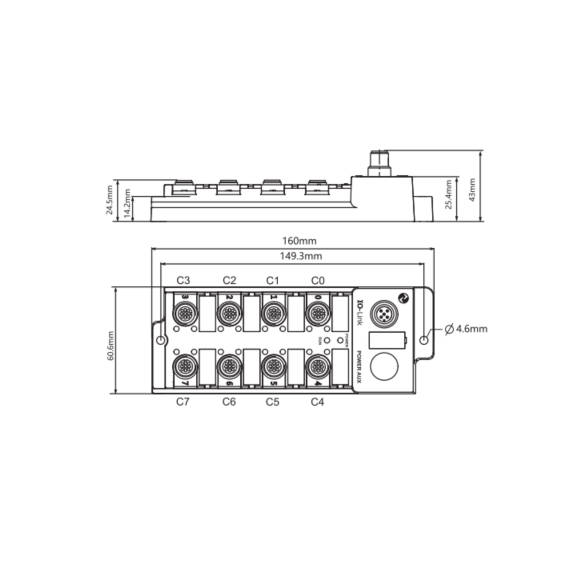

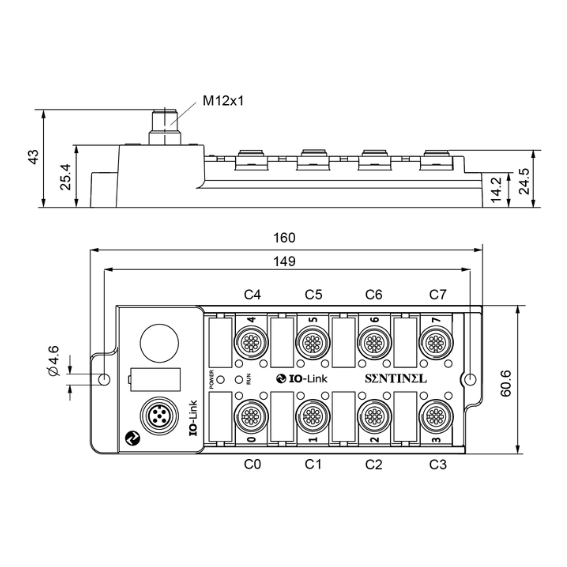

Mounting specifications

Working/load voltage

24VDC±10%

Module operating current

< 100mA

Load power group

4 groups powered separately

Output points

sixteen

Output current

0.5A

Output voltage drop

About 0.6V

Isolation method

Optocoupler isolation

ISDU (Indexing Service)

support

working temperature

-20…55℃

2024-10-31 SIOL-M12B-16DON-IODD files

Download

2024-03-15 SIOL-M12B-16DON_en

Download

Mounting accessories

ZAK3-2-ZAS3/PVC

IO-LINK Cable： Male，Female

Cable Material：PVC，2m

ZKM4-PG9

Field-Wireable Connector,M12,Female

Plastic shell，4-Pin，A-Code

CYCS5-2AK4

Y-Splitter without Cable

Housing Material：PVC

ZASY4-2ZAK3-2/PVC

Y-Splitter with Cable

Cable Material：PVC，2m

ZAS4-2/PVC

I/O Cable：M12 Male

Cable Material：PVC，2m
