ZMS5-5/PVC

Order number： 6052505

Quick Info

5-pin，7/8”connector
Protection class IP67
Straight male
Cable jacket：PVC, Gray
Cable length：5m

Specifications

Download

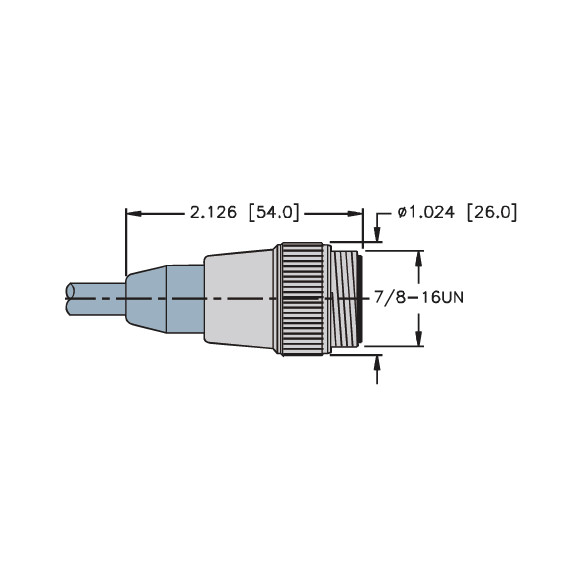

Mounting specifications

Rated voltage

10-30VDC

Current

5.3-7.7A

Insulation resistance

≥10^9

Cable length

Core cross-section

4x1.11mm²+0.75(PE)mm²

Cable diameter

8.5mm

Cable color

Gray

Contacts

Metal, CuZn, Gold-plated

Protection class

IP67

2022-04-13 ZMS5-5/PVC_en
