TB-18MN-APN6D-SC

Order number： 070411014

Quick Info

large size digital tube，rotate 180°.
The 304 stainless steel housing，the housing can be freely rotated by 330°.
Three programmable buttons can quickly select and switch the menus.
The probe length can be customized.

Specifications

Download

Accessories

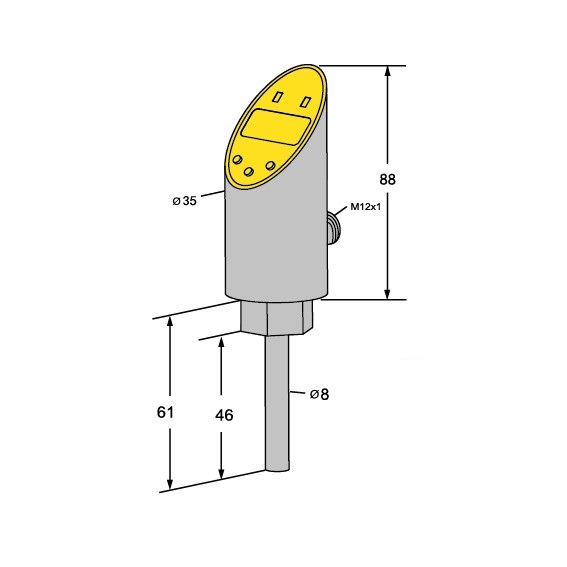

Mounting specifications

Operating voltage

15-30VDC

Process connection

M18x1.5 internal thread

Rated operation current

0.2A

Accuracy

1℃

Medium temperature range

-50-100℃

Output type

4...20mA+2xPNP/NPN

Housing material

304 Stainless steel

Probe material

304 Stainless steel

Protection class

IP65

2022-03-14 TB-18MN-APN6D-SC_en

Download

Mounting accessories

ZAK4.5-2/PVC

I/O Cable：5-pin，M12 Female

Cable Material：PVC，2m
