EL04X-12YP-AN6-SC

Order number： 10504014

Quick Info

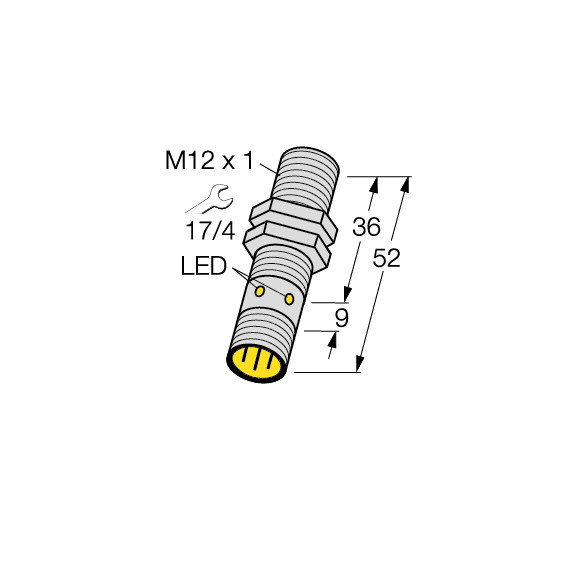

M12X1 cylindrical thread
CuZn-Cr shell material
M12x1 connector
Protection class IP67

Specifications

Download

Accessories

Mounting specifications

Operating Voltage

10-30VDC

Rated switching distance

4mm

Mounting conditions

Flush

Output

NPN NO

DC rated operational current

<100mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67

Mounting accessories

I/O Cable：3-pin，M12 Male-Female

Cable Material：PVC，2m

I/O Cable：3-pin，M12 Female

Cable Material：PVC，2m
