EL04X-12YP-AN6-C2

Order number： 10504011

Quick Info

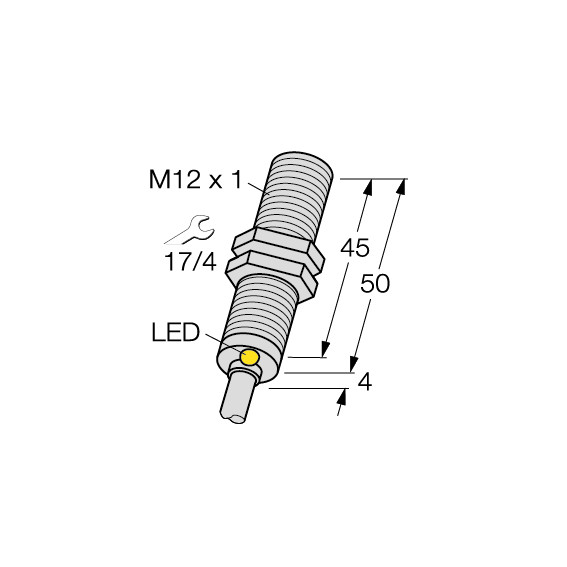

M12X1 cylindrical thread
CuZn-Cr shell material
2m,PVC
Protection class IP67

Specifications

Download

Mounting specifications

Operating Voltage

10-30VDC

Rated switching distance

4mm

Mounting conditions

Flush

Output

NPN NO

DC rated operational current

<100mA

Short-circuit protection

YES

Reverse polarity protection

YES

Housing material

CuZn-Cr

Protection class

IP67
