ELBC-8IOL-0001

Order number： 78283110

Quick Info

CC-LINK IE Field Basic remote I/O module
8 IO-Link Master Channels
2XM12,4-pin,D-code,Ethernet Fieldbus connection
IO-Link Protocol 1.1
Protection classes IP67
Copper-plated nickel connector
Fully potted module electronics
Glass fiber housing

Specifications
Download
Accessories

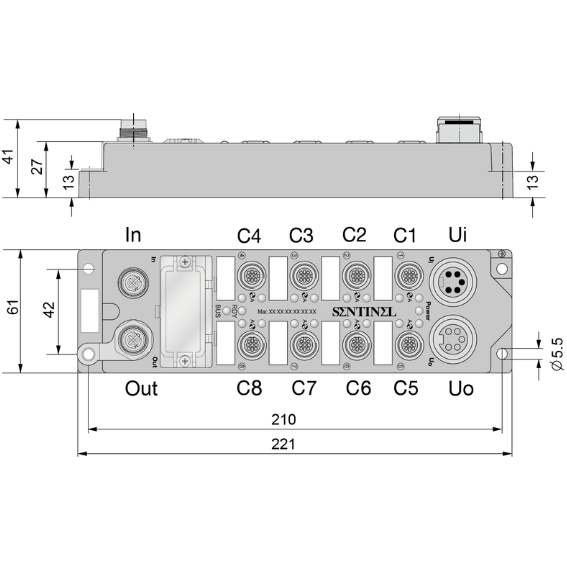

Mounting specifications
Supply voltage
24VDC±10%
Operating current
< 200mA
IO-Link Port type
Class A
Supply current
>8A
IO-Link specification
Version 1.1
Support Device
Maximum 32Bytes Input / 32Bytes Output
Auto-negotiation
YES
Auto-MDI/MDIX
YES
Operating temperature
-20-55℃

2024-02-21 ELBC-8IOL-0001_CSPP Files Download
2024-01-26 EPLAN_ELBC-8IOL-0001 Download
2023-05-19 ELBC-8IOL-0001_en Download
Mounting accessories
ZNS5-2-RJ45/PVC/PN/FLEX
Fieldbus： M12-RJ45
Cable Material：PVC，2m
ZNS5-2-ZNS5/PVC/PN/FLEX
Fieldbus： M12-M12
Cable Material：PVC，2m
ZMK5-2-ZMS5/PVC
Power Cable： Male，Female
Cable Material：PVC，2m
ZMK5-2/PVC
Power Cable： Female
Cable Material：PVC，2m
ZAK3-2-ZAS3/PVC
IO-LINK Cable： Male，Female
Cable Material：PVC，2m
MKP5-PG11
Field-Wireable Connector ，7/8‘’
5-Pin， Female
MSP5-PG11
Field-Wireable Connector ，7/8‘’
5-Pin， Male
HSE4-PG9
Field-Wireable Connector ，Fieldbus
4-Pin，D-Code
