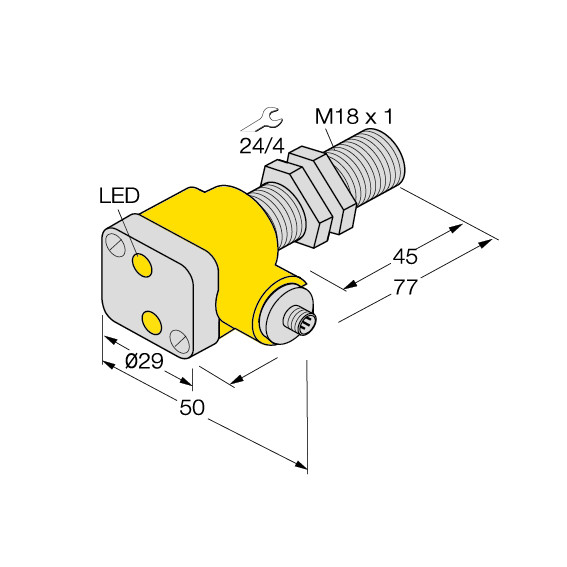

EL05U-18YP-AP7-SC

Order number： 4605302034

Quick Info

M18X1 cylindrical thread
CuZn-Cr shell material
3-wire PNP NO
5-pin M12x1 connector

Specifications

Download

Accessories

Mounting specifications

Rated voltage

18-30VDC

Monitoring range

6...6000min^-1

Load current

200mADC

Ambient temperature range

-25...85°C

Probe material

CuZn-Cr

Housing material

PBT

Protection class

IP67

Seting mode

Remote teaching line

Mounting accessories

I/O Cable：5-pin，M12 Female

Cable Material：PVC，2m
