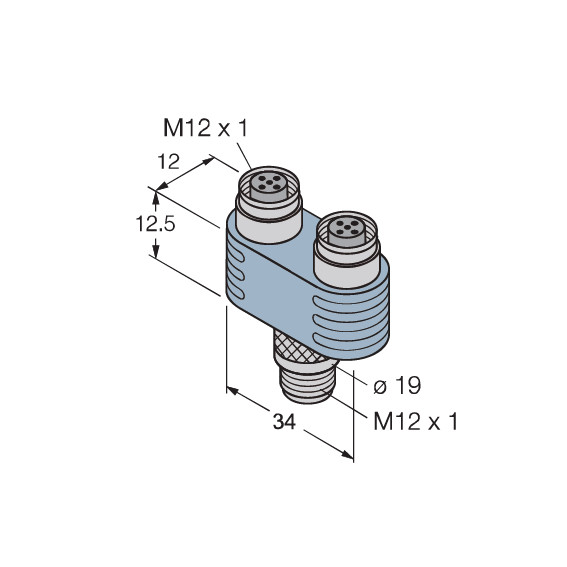

CYCS4-2AK3

Order number： 3712259

Quick Info

Y-Splitter
M12 male, 4-pin
M12 female, 3-pin
Protection class：IP67

Specifications

Download

Mounting specifications

Rated voltage

10-30VDC

Rated current

Insulation resistance

≥10^9Ω

Temperature range

-30-90℃

Connector body

Plastic, TPU, Blue

Contacts

Metal, CuZn, Gold-plated

Seal

Viton(FPM)Plastic

Protection class

IP67

2022-04-13 CYCS4-2AK3_en
